Gate Valves
Dancagram supplies a full range of AVK gate valves designed for durability and high-pressure systems. Ideal for waterworks, municipal, mining and industrial use.
We offer:

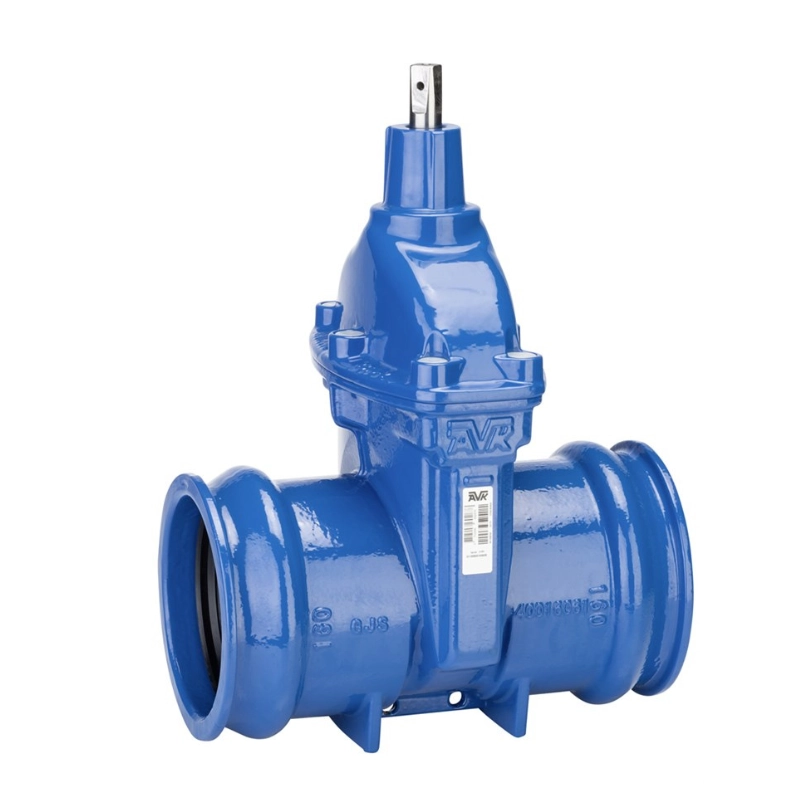

AVK GATE VALVE SOCKET END EURO GROOVE, PN16
Non-tensile for uPVC pipes, SS stem, EPDM, SANS664 coating, CTO, Local Content Requirements (LCR)
Socket end gate valve for drinking water and other neutral liquids including treated waste water free of solids and fibrous impurities to max. 70°C. Note: Operation direction clockwise to open
AVK gate valves are designed with built-in safety in every detail. The wedge is fully vulcanized with AVK’s own drinking water approved EPDM rubber compound. It features an outstanding durability due to the ability of the rubber to regain its original shape, the double bonding vulcanization process and the sturdy wedge design. The triple safety stem sealing system, the high strength stem and the thorough corrosion protection safeguard the unmatched reliability.
| Variant 01/80-046 | |
|---|---|
| Connection: | Socket Ends |
| Material: | Ductile iron |
| DN: | DN40 – DN400 |
| PN: | PN 16 |
| Closing direction: | Clockwise to Open |

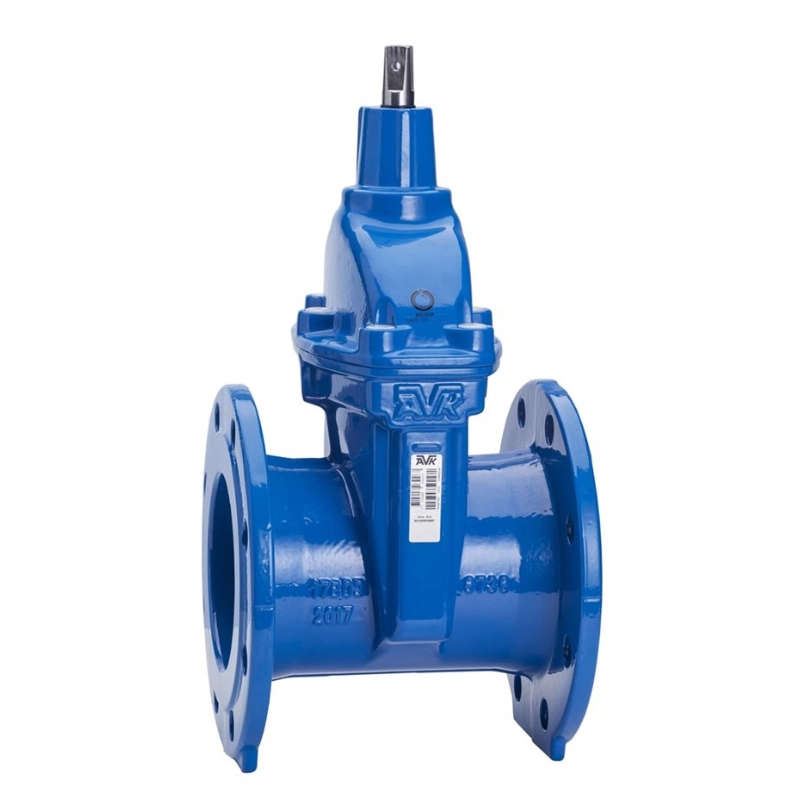

AVK GATE VALVE, FLANGED, PN10/16
Face/face EN558/3 (BS), EN1092 flange, CTO, ductile iron, SS stem, A2 bolts, 250µm blue EP, EPDM
Flanged gate valve, clockwise to open, for drinking water, treated waste water free of solids and fibrous impurities and other neutral fluids. Maximum operating temperature 70°C.
AVK gate valves are designed with built-in safety in every detail. The wedge is fully vulcanized with AVK’s own drinking water approved EPDM rubber compound. It features an outstanding durability due to the ability of the rubber to regain its original shape, the double bonding vulcanization process and the sturdy wedge design. The triple safety stem sealing system, the high strength stem and the thorough corrosion protection safeguard the unmatched reliability.
| Variant 02/20-004 | |
|---|---|
| Connection: | Flanged |
| Material: | Ductile iron |
| DN: | DN50 – DN400 |
| PN: | PN 16 |
| Closing direction: | Clockwise to Open |
AVK GATE VALVE, FLANGED, PN10/16
EN558/s.14 (F4), SS stem, A2 bolts
Flanged gate valve EN 558-2 S.14/DIN F4. For drinking water and neutral liquids to max. 70°C
AVK gate valves are designed with built-in safety in every detail. The wedge is fully vulcanized with AVK’s own drinking water approved EPDM rubber compound. It features an outstanding durability due to the ability of the rubber to regain its original shape, the double bonding vulcanization process and the sturdy wedge design. The triple safety stem sealing system, the high strength stem and the thorough corrosion protection safeguard the unmatched reliability.
| Variant 06/30-0035 | |
|---|---|
| Connection: | Flanged |
| Material: | Ductile iron |
| DN: | DN50 – DN600 |
| PN: | PN 16 |
| Closing direction: | Clockwise to Close |
Need help choosing the right valve?
Contact us on 083 947 6763,
WhatsApp 083 782 7468
email info@dancagram.co.za
for pricing and availability.
